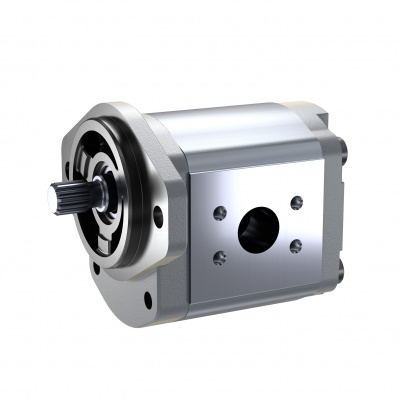

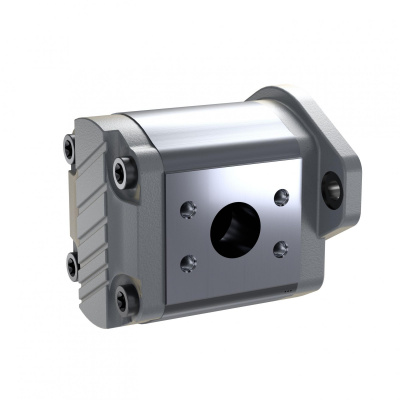

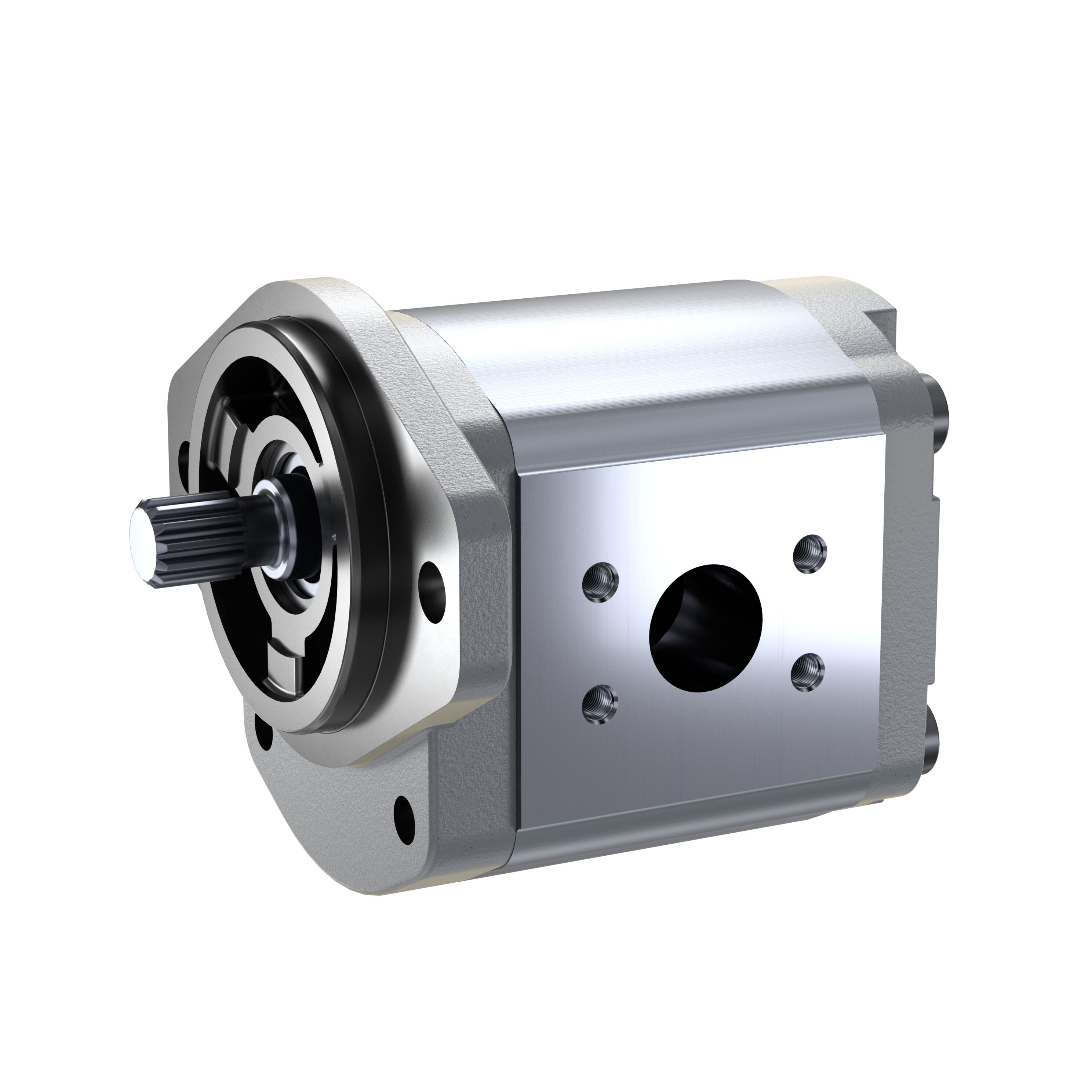

BOSCH REXROTH AZPG-22-056RDC07MB 0510825039
"56 cm³/rev, clockwise rotation, Splined shaft SAE J744 22-4 (13T 16/32DP), SAE J744 101-2 (B), Rectangular flange SAE metric thread"
|
Product attributes |
|
|
Max. flow [l/min] |
128.8 |
|
Size (geometric displacement) [cm³/rev] |
56 |
|
Maximum intermittent pressure [bar] |
225 |
|
Maximum rotational speed [rpm] |
2300 |
|
Drive shaft |
Splined shaft SAE J744 22-4 (13T 16/32DP) |
|
Direction of rotation |
clockwise rotation |
|
Front cover |
SAE J744 101-2 (B) |
|
Housing material |
Aluminum |
|
Noise level |
Standard noise level |
|
External gear unit |
External gear unit |
|
External gear unit function |
Pump |
|
Series |
Model G (22.5 ... 56 cm³/rev) |
|
Unit version |
Bearing diameter Ø 26mm |
|
Version |
corrosion-resistant, pinned |
|
Line connection |
Rectangular flange SAE metric thread |
|
Sealing material |
NBR |
|
Rear cover |
Standard |
|
Weight [kg] |
11.200 |
